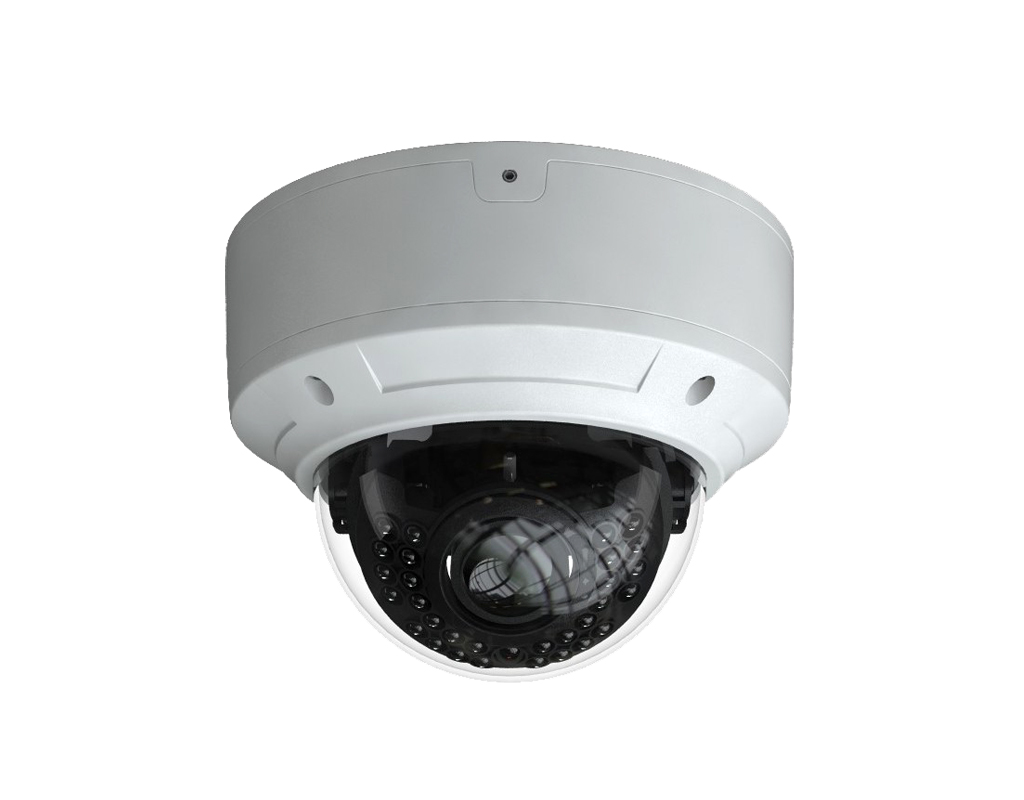

Camera IP Dome hồng ngoại HISHARP 4M IP Camera‧ HS-D040QD
– Cảm biến hình ảnh: 1/3 inch CMOS.
– Độ phân giải: 4 Megapixel (2688 x 1520).
– Ống kính: 2,8-12MM .
– Tầm quan sát hồng ngoại: 10 – 60 mét.
– Chức năng ICR tự động chuyển đổi ngày / đêm
– Hỗ trợ Zoom
– Hỗ trợ giảm nhiễu: 3D DNR, WDR.
– Hỗ trợ đầu ra CVBS (BNC), âm thanh 1 chiều.
– Hỗ trợ chức năng cấp nguồn qua mạng PoE.
– Hỗ trợ xem trên điện thoại Smartphone.
– Hỗ trợ P2P.
– Nguồn điện: 12VDC.
4M IP Camera‧ HS-D040QD
4MP ( 2560 x 1440 )
3D DNR / DWDR
Support smart phone, iPad, remote monitoring
Support P2P
ROI
2 way audio
Dimension
Specifications
| Model | HS-D040QD | |
| Compression method | H.265 / H.264 / MJPEG | |
| Image Sensor | 1/3″ CMOS | |
| Image Pixels | 2560 x 1440 | |
| Resolution | 4MP(2560×1440) / 1080P (1920×1080) / 720P (1280×720) / D1 / CIF | |
| Triple streaming | S1: 4MP@30fps / 1920×1080@30fps
S2: D1@30fps / CIF@30fps S3: D1@30fps / CIF@30fps |
|
| Bit Rate | 64Kbps ~ 8Mbps | |
| Stream transmission | CBR / VBR | |
| LAN Port | Ethernet (10/100Base-T), RJ45 connector | |
| Protocol | TCP/IP , UDP , DHCP , NTP , RTSP , PPPoE , DDNS , SMTP , FTP | |
| Web Browser | Microsoft Internet Explorer 8.0 or above | |
| Storage | Network remote storage / Support TF card, the max capacity is 128 GB (class10 or above) | |
| Alarm Input/Output | 1/1 | |
| Electronic Shutter | 1/25 ~ 1/100,000 sec. | |
| Min. Illumination | 0 Lux (IR LED ON) | |
| IR Distance | 50 M | |
| ICR | Yes | |
| PoE | Yes | |
| Audio Input | 1 | |
| Audio Output | 1 | |
| Lens | Motorized zoom 2.8~12mm | |
| Power Source | DC12V | |
| Operating Temperature | -10°C~50°C, 10%~90% humidity | |
| Dimension | 114 x ø150 mm | |
| Weatherproof | IP66 |
