Camera IP hồng ngoại HISHARP HS-T036QC
– Cảm biến hình ảnh: 1/3 inch CMOS.
– Độ phân giải: 4 Megapixel.
– Ống kính: 2,8-12MM.
– Tầm quan hồng ngoại: 10 ~ 60 mét.
– Độ nhạy sáng: 0.05 Lux @F1.2, AGC ON, 0 Lux với IR.
– Cổng kết nối: RJ45.
– Hỗ trợ giao thức: TCP/ IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP.
– Chuẩn: ONVIF.
– Hỗ trợ trình duyệt Web: Internet Explorer, Chrome, CMS,…
– Số người truy cập đồng thời: RJ45.
– Hỗ trợ chức năng cấp nguồn qua mạng PoE.
– Nguồn điện: 12VDC.
4M IP Camera‧ HS-T036QC
4MP (2560 x 1440)
3D DNR / DWDR
Support smart phone, iPad, remote monitoring
Support P2P ,ROI
2 way audio

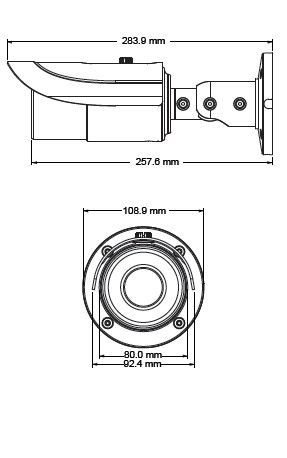

Dimension
Specifications
| Model | HS-T036QC | |
| Compression method | H.265 / H.264 / M-JPEG | |
| Image Sensor | 1/3″ CMOS | |
| Image Pixels | 2560 x 1440 | |
| Resolution | 4MP(2560×1440) / 1080P (1920×1080) / 720P (1280×720) / D1 / CIF | |
| Triple streaming | S1: 4MP@30fps / 1920×1080@30fps
S2: D1@30fps / CIF@30fps S3: D1@30fps / CIF@30fps |
|
| Bit Rate | 64Kbps ~ 8Mbps | |
| Stream transmission | CBR / VBR | |
| LAN Port | Ethernet (10/100Base-T), RJ45 connector | |
| Protocol | TCP/IP , UDP , DHCP , NTP , RTSP , PPPoE , DDNS , SMTP , FTP | |
| Web Browser | Microsoft Internet Explorer 8.0 or above | |
| Storage | Network remote storage / Support TF card, the max capacity is 128 GB (class10 or above) | |
| Alarm Input/Output | 1/1 | |
| Electronic Shutter | 1/25 ~1/100,000 sec. | |
| Min. Illumination | 0 Lux (IR LED ON) | |
| IR Distance | 60 M | |
| ICR | Yes | |
| PoE | Yes | |
| Lens | Motorized zoom 2.8~12mm | |
| Power Source | DC12V | |
| Audio Input | 1 | |
| Audio Output | 1 | |
| Operating Temperature | -10°C~50°C, 10%~90% humidity | |
| Dimension | 283.9mm x ø108.9 (Diameter)mm | |
| Weatherproof | IP66 |
