Specifications

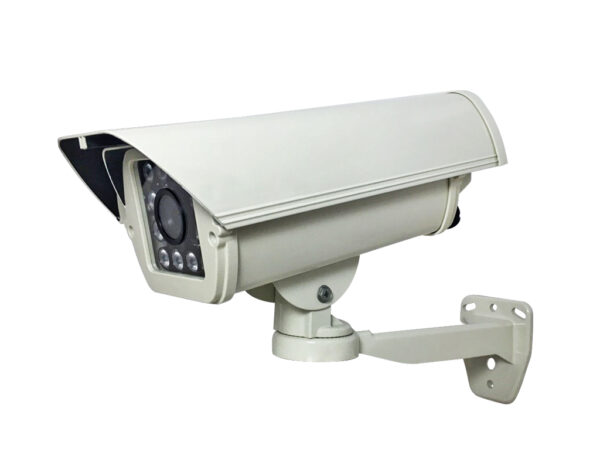

| Model | HS-4IN1-H012AA | |
| Pick up device | 1/2.8” SONY CMOS : 2.0 Mega | |
| Solution | 2441H + SONY 323 | |
| Resolution | 1920(H) x 1080(V) | |
| Video Output | AHD / CVBS (optional : TVI / CVI) | |
| Synchronization | Internal | |
| Scanning System | 2:1 Interlace | |
| Electronic Shutter | Auto 1/60 (1/50) ~ 1/50,000 sec. | |
| Min. Illumination | 0.01 Lux | |
| Video Output | 1.0 Vp-p / 75 ohm composite | |
| IR Distance | 40M | |
| Coaxial Cable Transmition Distance (3C/5C) | 300 / 500 M | |
| Twisted Cable Transmition Distance(Cat 5.e standard) | 200 M | |
| Lens | Board Lens 3.6 / 6mm ; Optional: Vari-focal Lens 2.8~12mm | |
| Control | CoC (Control Over Coaxial) | |
| Power Source | DC12V±10% / 1A | |
| Operating Temperature | -10℃ ~ 50℃ (14℉ ~ 122 ℉) | |
| Storage Temperature | -20℃ ~ 70℃ (-4℉ ~ 158℉) | |
| Dimension | 147(W) x 115(H) x 313(D) mm | |
| Weatherproof | IP66 |
